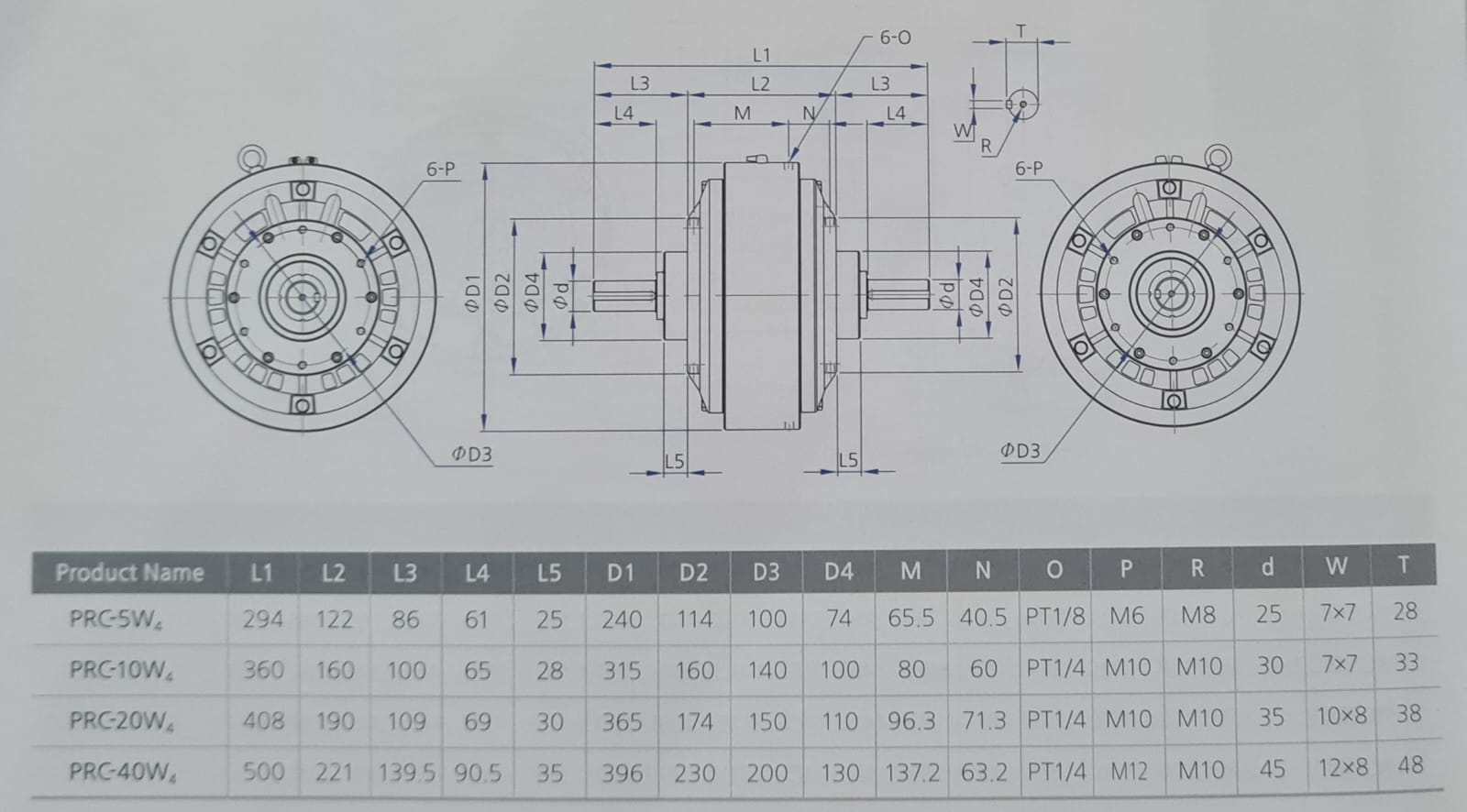

PRC-W4 Type
The PRC-W4 Type is a high-performance, water-cooled powder clutch from PORA Electric Machinery, specifically engineered for demanding applications within the printing and packing industry. Designed for continuous operation and high-slip conditions, this special cooling type clutch provides precise and stable torque control, with models available offering torque ratings from 50 Nm to 400 Nm. Operating on a standard 24 Vdc, the PRC-W4 series is built for durability and reliability, featuring robust construction and specific bearing configurations to handle high rotational speeds. Its integrated water cooling system is essential for dissipating heat effectively, preventing burnout and ensuring consistent performance during maximum RPM utilization.
Product Specification
| Specification | PRC-5W | PRC-10W | PRC-20W | PRC-40W |
|---|---|---|---|---|
| Torque | 50 | 100 | 200 | 400 |
| Voltage | 24 | 24 | 24 | 24 |
| Resistor | 9.3 | 8.4 | 7.3 | 5.8 |
| Current | 2.6 | 2.9 | 3.3 | 4.1 |
| Power | 61.9 | 68.6 | 78.9 | 99.3 |
| Time Contant(sec) | 0.13 | 0.25 | 0.37 | 0.40 |
| Weight (Kg) | 23.4 | 47.7 | 72 | 117 |
