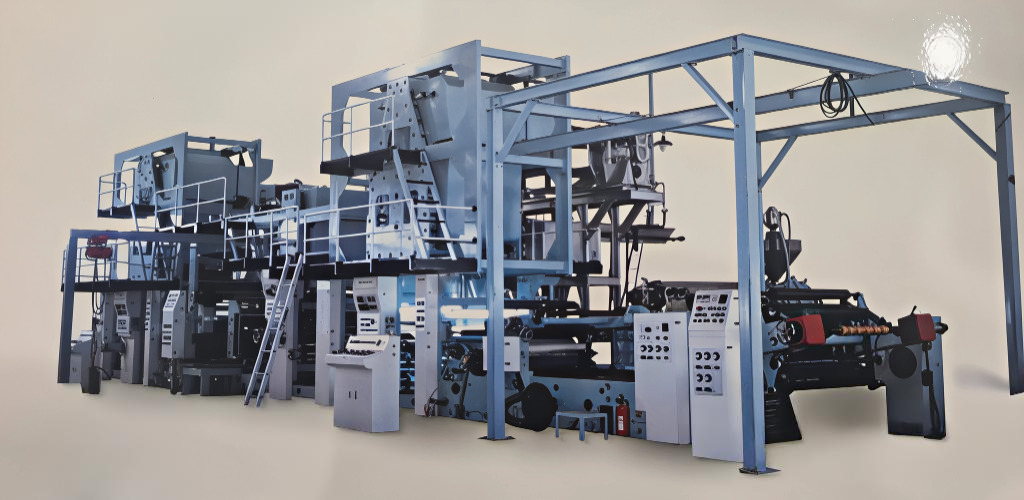

Extrusion Laminating Machine
Extrusion Laminating Machine is a high-performance system designed for coating and laminating flexible materials such as plastic films, aluminum foil, paper, and nonwoven substrates with molten resin through the extrusion process. In the single extrusion setup, one extruder applies a uniform resin layer to bond substrates, ideal for standard laminating needs. The tandem extrusion setup uses two extruders in sequence, allowing multi-layer lamination, stronger bonding, and enhanced barrier properties for more demanding applications. Equipped with precise temperature and tension control, efficient cooling and winding systems, and user-friendly automation, this machine ensures consistent quality, high production speed, and reduced waste. It is widely used in food packaging, pharmaceuticals, and industrial laminates where durability, shelf life, and superior sealing performance are critical.
Product Specification

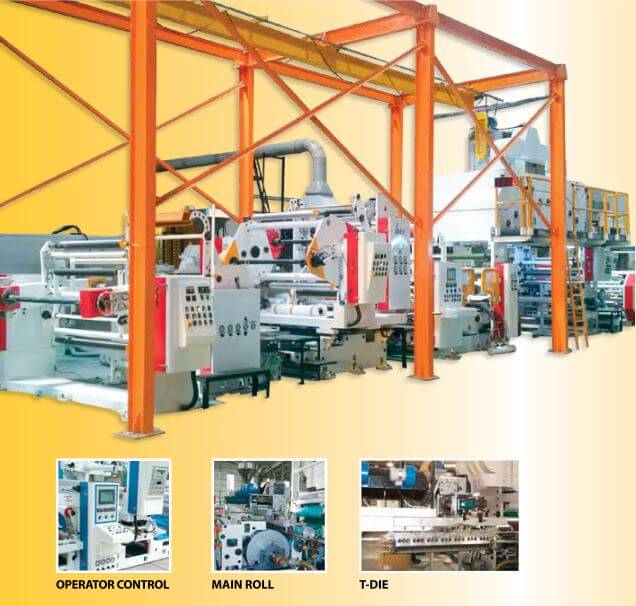

| Specification | IEL -130s | IEAL - 1302 | IEL -140 |
|---|---|---|---|
| APPLICABLE WEB MATERIALS | PLASTIC FILM AND PRINTED PLASTIC FILM | PLASTIC FILM AND PRINTED PLASTIC FILM | PLASTIC FILM AND PRINTED PLASTIC FILM |
| SANDWICH MATERIALS | PLASTIC FILM AND ALUMINUM FOIL | PLASTIC FILM AND ALUMINUM FOIL | PLASTIC FILM AND ALUMINUM FOIL |
| WEB WIDTH | 700 - 1200 MM | 700 - 1200 MM | 700 - 1200 MM |
| RESIN FOR EXTRUDING | PP, LDPE | PP,LDPE,EAA,EVA | PP,LDPE,EAA,EVA |
| EXTRUDING CAPACITY | 200KG/HR | 250KG/HR | 250 KG/HR |
| COATING THICKNESS | 15 - 30 | 12 - 50 | 12 -50 |
| MAX. DIAMETER UNWINDER | 600MM | 1,000MM | 1,000MM |
| MAX. DIAMATER REWINDING | 800MM | 1,000MM | 1,000MM |
| MAX.MACHINE SPEED | 150 M/min | 200 M/min | 220 M/min |
| ANCHOR COATING | SHAFTLES TYPE | SHAFTLES TYPE | SHAFTLES TYPE |
| T-DIE MANUFACTURER | MADE IN KOREA | MADE IN JAPAN | MADE IN JAPAN |
| DRYING SOURCE | HEAT EXHANGER ELECTRIC/THERMAL OIL/STEAM | HEAT EXHANGER ELECTRIC/THERMAL OIL/STEAM | HEAT EXHANGER ELECTRIC/THERMAL OIL/STEAM |
